22 Small Bathroom Layout Floor Plans Ideas
Small bathrooms can feel like you’re playing Tetris with plumbing. But with the right layout, even the tiniest space can feel like a cozy spa.
I’ve worked with clients who thought they were cursed with their postage-stamp bathrooms—until we flipped the script and used layout like a secret weapon.
Let’s walk through 22 real, practical, tested layout ideas to make your small bathroom not only work but shine.
Whether you’re dealing with a 5×8 box or a skinny rectangle, there’s a floor plan here that’ll speak directly to your space.

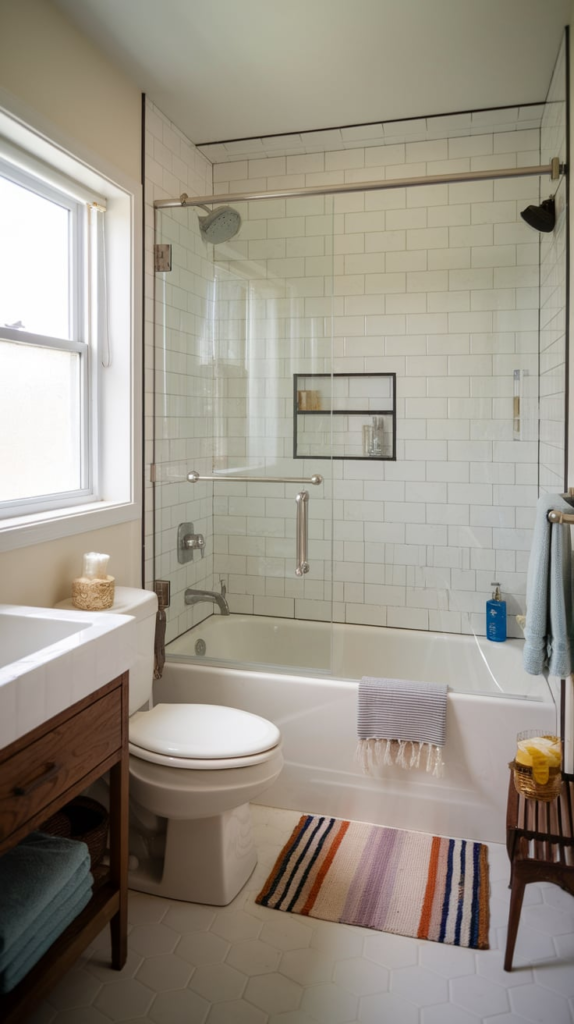

1. The Classic 5×8 Layout (The “Standard Saver”)
If your bathroom is the standard 5 feet by 8 feet, congrats—you’ve got a layout that 70% of American homes already deal with.
It typically includes a toilet, sink, and a tub or shower in one row.
Here’s why it works:
- Linear plumbing keeps renovation costs down.
- Fits a vanity up to 36 inches without crowding.
- Swap tub for walk-in shower? You just bought yourself three square feet of legroom.
👉 Tip: Choose a floating vanity to open up floor space, making the room feel bigger than it is.

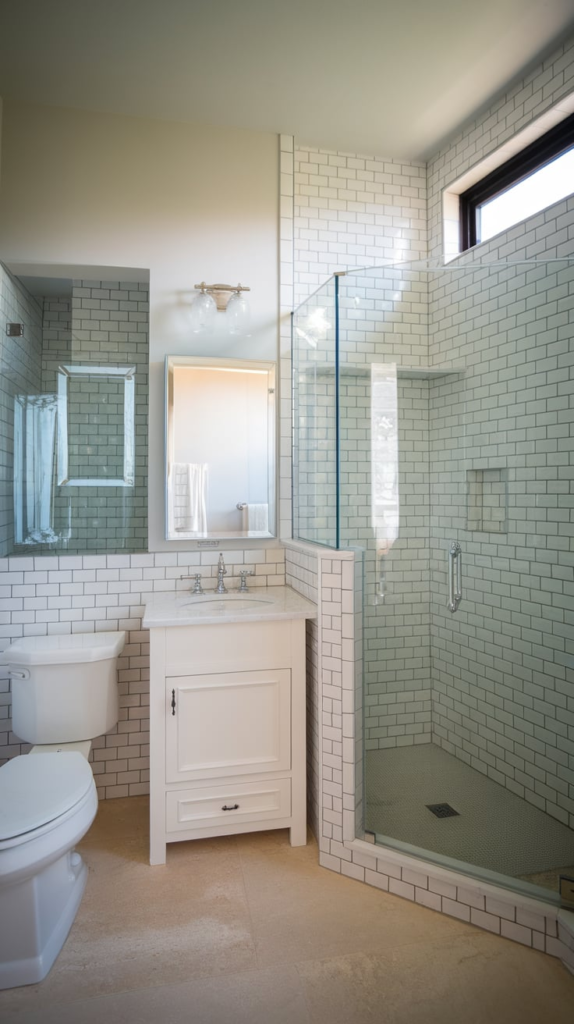

2. Corner Shower Layout (The “Space Slicer”)
When space is tight, corners are gold mines.
A neo-angle or curved corner shower lets you tuck the shower into a corner, freeing up room for other fixtures.
This plan is ideal for bathrooms under 40 square feet.
Why it works:
- Saves up to 5 square feet compared to a rectangular shower.
- Opens up the center of the room for better movement.
📏 If you have a 6×6 bathroom, this layout leaves room for a 24″ vanity and standard toilet.

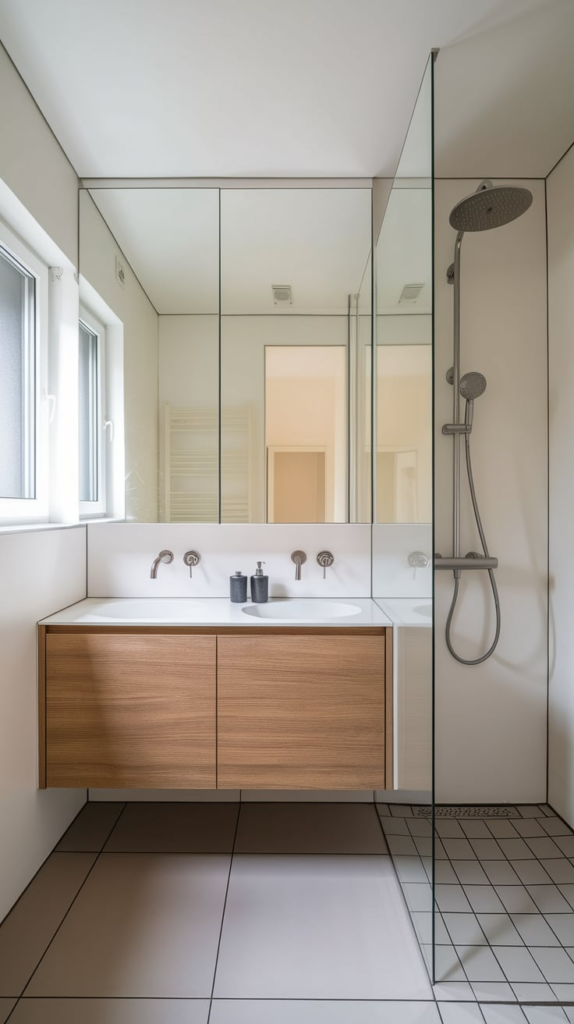

3. Wall-to-Wall Shower (The “Spa Stretch”)
One of my favorite remodels ever took a 7×5 bathroom and stretched the shower wall-to-wall across the back.
No tub, just a luxurious walk-in with a glass partition.
Why this layout rocks:
- You get a modern, spa-like feel.
- The long shower makes the room look longer.
- Great for resale value—walk-ins are now a top request in home listings (Realtor.com reports 62% of buyers prefer showers over tubs in small bathrooms).
🧼 Add a built-in bench and a wall niche to make it feel custom.

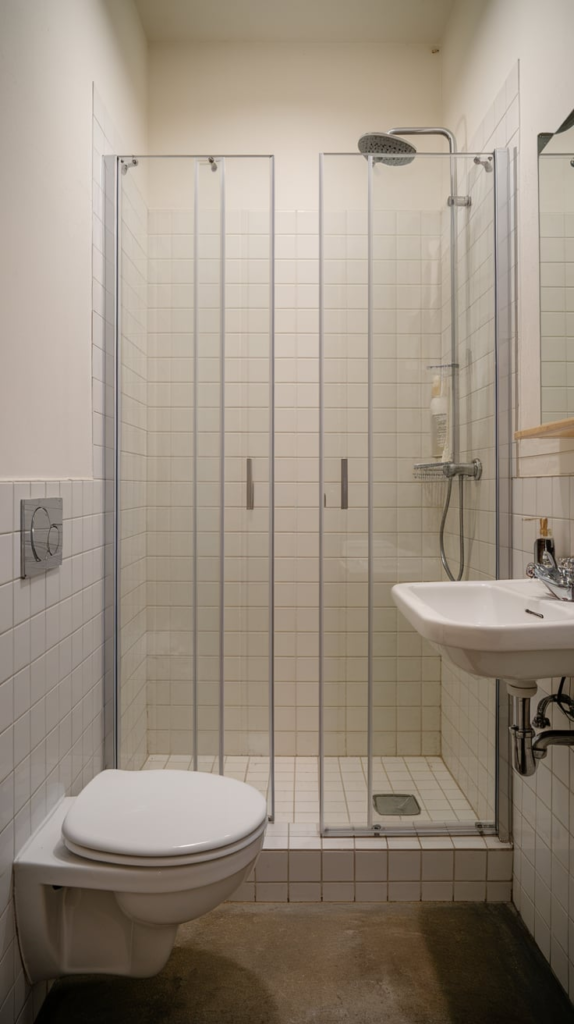

4. Floating Everything (The “Weightless Wonder”)
This isn’t a layout so much as a strategy. If you mount the vanity and toilet to the wall, you free up floor space, which visually enlarges the room.
Pair this with:
- A frameless glass shower.
- Oversized floor tiles (fewer grout lines make it look cleaner and larger).
💡 Fun fact: Floating toilets (aka wall-mounted) can save up to 10 inches of depth.

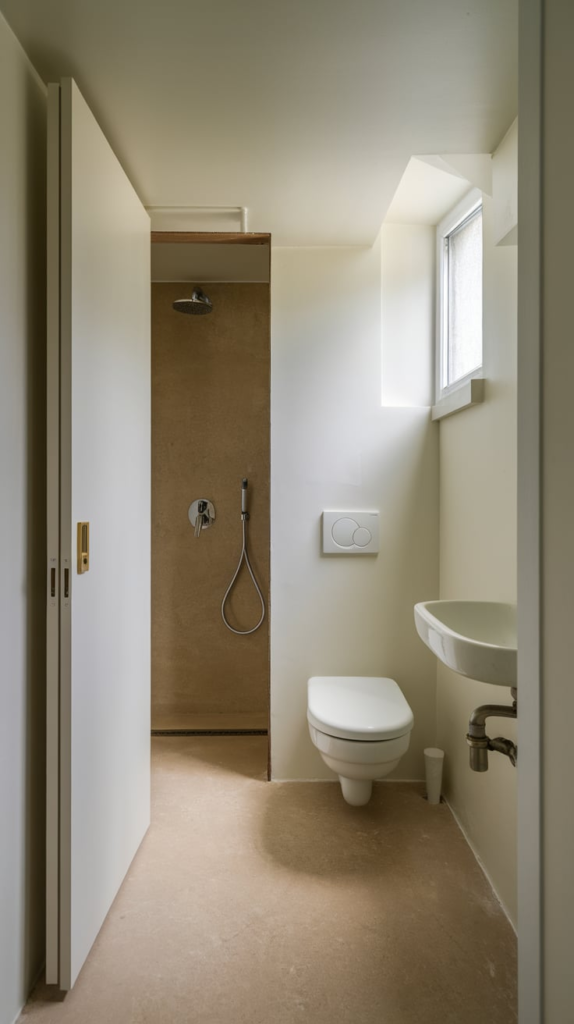

5. Pocket Door Layout (The “Secret Slide”)
You ever open a bathroom door and hit the vanity? Pocket doors are the answer.
This layout trick:
- Frees up 9 to 12 square feet.
- Allows you to install a larger vanity or gain more room for movement.
🛠 Pocket doors cost more to install, but they’re worth it in tiny bathrooms where every inch counts.
6. Wet Room Layout (The “Euro Splash”)
Inspired by European designs, a wet room means the entire bathroom is waterproofed.
The shower has no curb, just a floor drain and a slope.
Perfect for:
- Bathrooms under 5×7.
- Accessibility needs.
Stats say wet rooms boost resale in aging communities by up to 12% due to accessibility upgrades (NAHB, 2022).
7. Galley Style Layout (The “Hallway Hero”)
Got a long, narrow space? Treat your bathroom like a kitchen galley. Place the sink on one side, toilet on the other, and a shower at the end.
Best for rooms that are at least 8 feet long and 3.5 feet wide.
🪞 Use mirrored cabinets and a light color palette to bounce light and fight the tunnel effect.
8. L-Shaped Layout (The “Corner Cozy”)
This one’s a gem. Using an L-shaped layout allows you to fit more into less visible corners.
For example:
- Vanity and toilet on one wall.
- Shower wraps around into the perpendicular wall.
Great for square bathrooms like 6×6 or 7×7.
9. Tub-to-Shower Conversion Layout (The “Space Flip”)
If you never use your tub, swap it for a luxurious walk-in shower.
Benefits:
- Frees up up to 15 square feet.
- Easier to clean.
- Adds a sense of luxury and modernity.
According to Zillow, home listings mentioning “walk-in shower” sold 32% faster.
10. Toilet Niche Layout (The “Privacy Pod”)
Separate the toilet into a niche or mini alcove behind a half wall.
This creates:
- Visual separation.
- Room for a larger vanity.
Add a sconce and a plant and you’ve got a throne fit for royalty—without needing more space.
11. Single Wall Layout (The “Plumbing Line-Up”)
All fixtures along one wall? That’s a contractor’s dream.
Why?
- Lowest cost layout to build or remodel.
- Simple plumbing—less labor, fewer surprises.
- Leaves the opposite wall open for storage or decor.
Ideal for 4×7 or 5×8 bathrooms.
12. Diagonal Layout (The “Angle Advantage”)
This one’s bold—but brilliant. Rotate the shower or vanity 45 degrees and place it in a corner.
It sounds wild, but it softens harsh lines and creates better sight lines.
🧩 Bonus: Makes it easier to maneuver in small square rooms like 6×6.
13. Shower Behind Door Layout (The “Stealth Stall”)
This layout hides the shower behind the swing of the door. It’s out of sight and uses what’s usually dead space.
Best for:
- Bathrooms under 40 sq. ft.
- Avoiding visual clutter.
Pro tip: Go for a glass panel instead of a curtain to maintain visibility and light.
14. Parallel Vanities Layout (The “Couples’ Retreat”)
Got 5+ feet width? You can fit two small vanities across from each other, and the shower or tub at the end.
This avoids morning mirror battles and adds symmetry.
Great for:
- Narrow but long bathrooms (like 5×10).
- Shared guest or kids’ baths.
15. Hidden Storage Layout (The “Stash & Dash”)
Layout is also about how you use vertical space.
Tricks to try:
- Recessed cabinets behind mirrors.
- Niches above the toilet.
- Toe-kick drawers under vanities.
🧠 Studies show clutter makes small spaces feel 25% smaller. Layout isn’t just floor—it’s walls and ceiling too.
16. Mirror Wall Layout (The “Infinity Illusion”)
Install a full wall mirror above the vanity (even better if it spans the wall behind the toilet too).
Why this works:
- Visually doubles your space.
- Reflects light.
- Looks high-end.
Best paired with floating fixtures and wall-mounted faucets.
17. Jack & Jill Shared Layout (The “Two-Timer”)
If two bedrooms share a bath, a Jack & Jill layout with double entrances and a centered vanity/toilet area works wonders.
You’ll need:
- 5×10 or 6×12 at least.
- Pocket doors or barn sliders for privacy.
It’s like sharing a bathroom without losing your sense of personal space.
18. Off-Center Sink Layout (The “Vanity Twist”)
Mounting the sink off-center on the vanity creates room for more usable counter space on one side.
Perfect for:
- Narrow vanities in tight bathrooms.
- Makeup stations or shared sink space.
Small change, big difference.
19. Triangle Flow Layout (The “Golden Geometry”)
Borrowed from kitchen design, this layout arranges sink, toilet, and shower in a triangle to reduce walking steps and improve flow.
It’s intuitive, efficient, and just… works.
You’ll need a bit more room (6×8 or larger), but it’s a joy to use daily.
20. Reverse Door Swing Layout (The “Swing Savior”)
Changing a door to swing outward instead of in adds up to 8 square feet of usable space.
Combine this with:
- Wall-hung fixtures.
- Slim vanities (18”–20”).
Especially helpful for bathrooms under 5 feet wide.
21. Window Wall Layout (The “Sunlit Stretch”)
If your bathroom has a window, place the shower or vanity along that wall to maximize natural light.
Bonus:
- Window showers feel open-air.
- Less reliance on artificial light = lower bills.
🌞 According to Energy.gov, daylighting can cut energy use by up to 40% in bathrooms.
22. Hidden Tank Toilet Layout (The “Minimal Marvel”)
Using a concealed tank toilet (the kind with just a flush plate on the wall) frees up valuable inches.
This creates:
- Sleeker design.
- Easier cleaning.
- Room for towel storage above the tank area.
They cost more upfront but pay off in usability and aesthetics.
Final Thoughts
Designing a small bathroom is like solving a beautiful, tiled puzzle. It’s not about what you remove—it’s about what you reimagine.
I’ve seen 35-square-foot bathrooms turn into serene retreats with just a layout shift and clever storage. You don’t need more space—you need smarter space.
So pick a layout that matches your routine, not just the latest trend.
Then add your personality—maybe it’s brass fixtures, maybe it’s a cheeky wallpaper.
Just remember, every square inch counts.
And when you treat your bathroom like prime real estate, it’ll pay you back in comfort, beauty, and even resale value.
If you’ve tried one of these layouts—or discovered your own genius floor plan—don’t keep it a secret. I’d love to hear how you made it work.
Let’s make the world’s smallest bathrooms the smartest ones too.
