19 Woodworking Shop Layout Ideas
Setting up a woodworking shop is like crafting the perfect workpiece—it requires planning, precision, and a touch of creativity.
A well-designed shop isn’t just about squeezing in tools; it’s about efficiency, safety, and maximizing your workflow.
Whether you have a spacious garage or a compact basement, these 19 woodworking shop layout ideas will help you create a functional and enjoyable workspace.
1. The Classic U-Shaped Layout
The U-shaped layout is perfect for keeping everything within arm’s reach.
Picture a chef’s kitchen—every tool and ingredient is exactly where it should be.
In a woodworking shop, this means placing your workbench, table saw, and assembly station in a U-formation to minimize walking and maximize productivity.
2. The Efficient L-Shaped Layout
Ideal for smaller workshops, the L-shaped layout keeps tools along two adjacent walls, leaving an open area for assembly and finishing.
This setup works well if you have limited square footage but still want a logical workflow.
3. The Straight-Line Layout for Narrow Spaces
If your shop is long and narrow, a straight-line layout can be a lifesaver.
Arrange your tools along one wall and leave the opposite side open for movement.
This works well for one-person shops, preventing clutter and creating a streamlined workflow.

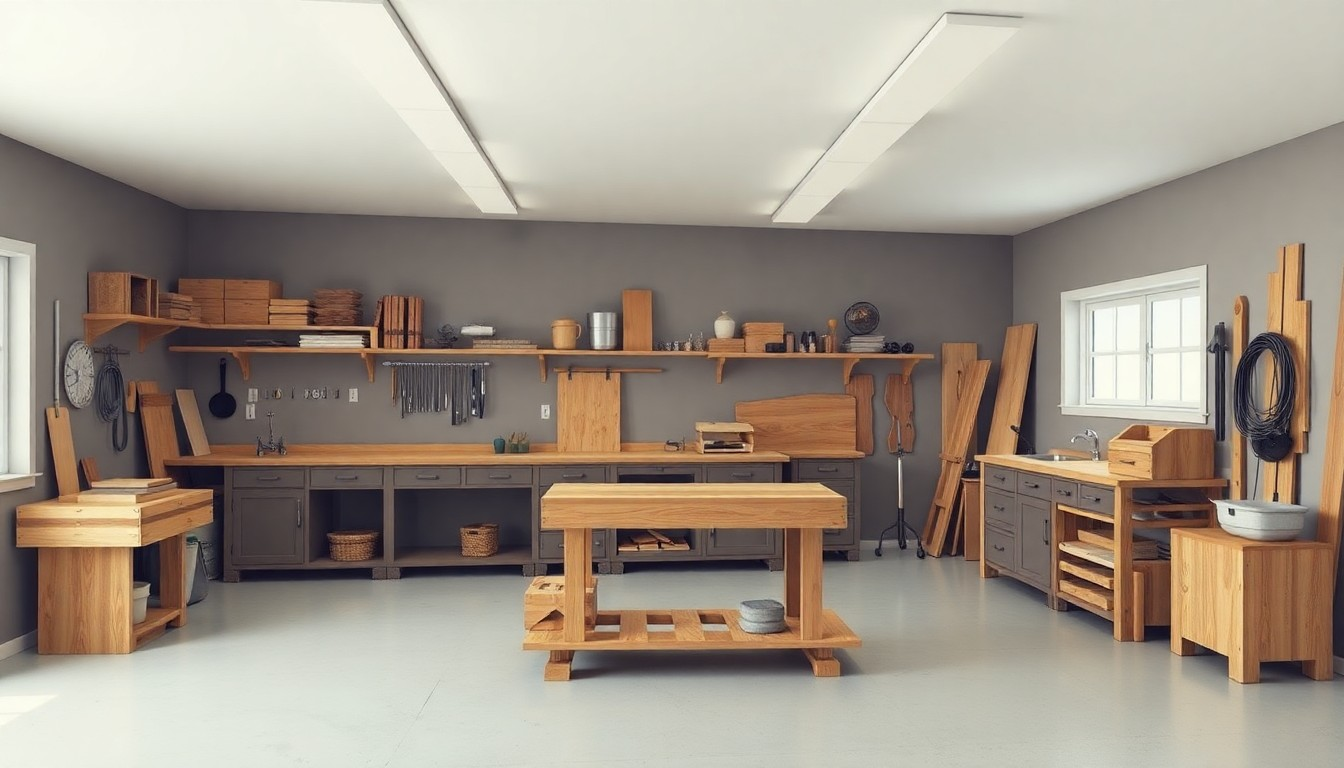

4. The Center-Island Layout for Maximum Accessibility
Placing a large central workbench in the middle of your shop gives you 360-degree access to your projects.
This layout is excellent for those who work on larger furniture pieces or need plenty of assembly space.
5. Dedicated Assembly Zone for Seamless Builds
Every woodworking project goes through stages—cutting, shaping, sanding, assembling.
Having a dedicated assembly area with plenty of space ensures you’re not constantly shifting materials around.
Keep clamps, glue, and fasteners close by for quick access.
6. Wall-Mounted Tool Storage for an Organized Space
Wall-mounted storage is like a well-organized toolbox—everything is visible and within reach.
Use French cleats, pegboards, or custom shelves to keep tools off your work surfaces but easily accessible.
7. Mobile Workstations for a Flexible Workshop
Instead of locking everything in place, consider adding wheeled workbenches and tool stands.
This allows you to rearrange your shop as needed, making it easier to accommodate new tools or larger projects.

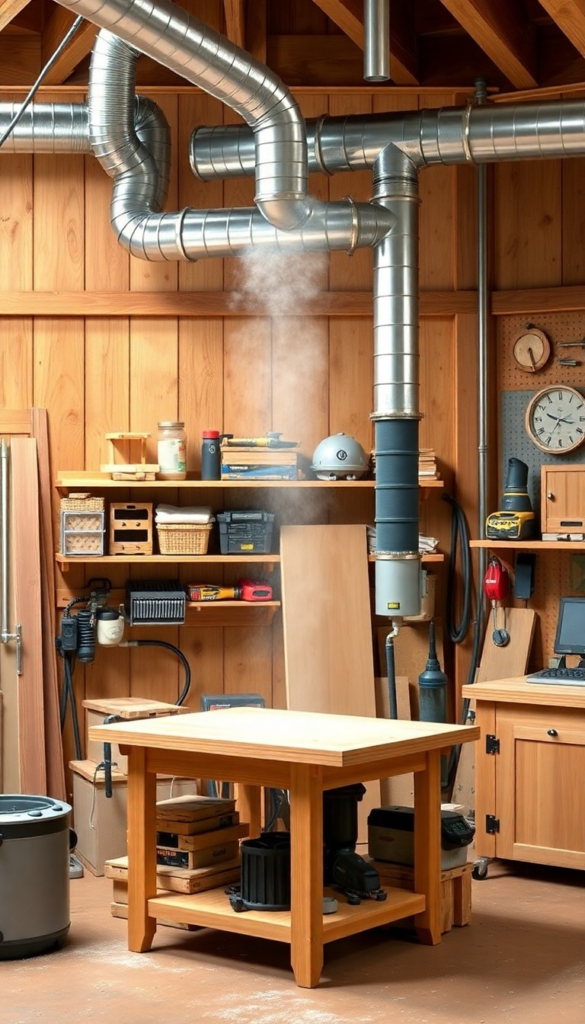

8. Dust Collection System for a Cleaner and Healthier Shop
A proper dust collection system isn’t just about cleanliness—it’s about your health.
Wood dust is a known respiratory hazard, so investing in a dust extractor or shop vac system can keep your air clear and your workspace safe.
9. Overhead Storage to Maximize Space
If floor space is limited, look up. Overhead storage racks can hold lumber, clamps, and seasonal tools without cluttering your workspace.
Just make sure it’s easy to access and doesn’t interfere with lighting.
10. A Well-Lit Shop for Precision Work
Good lighting is non-negotiable in a woodworking shop.
Install bright LED overhead lights and task lighting near saws, benches, and sanding areas.
Poor lighting leads to inaccurate cuts and safety risks.
11. Soundproofing for a Quieter Work Environment
Power tools are loud—really loud.
Adding soundproofing panels, rubber mats, and insulated doors can reduce noise levels, making your shop more comfortable (and keeping neighbors happy).
12. Separate Finishing Area for a Professional Touch
Sawdust and wet finishes don’t mix well.
Having a dedicated finishing space, even if it’s just a corner with a ventilation system, ensures cleaner and smoother results.
13. Smart Tool Placement for an Efficient Workflow
Your table saw, jointer, and planer should be arranged in a way that minimizes extra movement.
Think of it as a production line—wood enters, gets shaped, and exits as a finished piece.
14. Climate Control for Year-Round Comfort
Extreme temperatures can damage wood and make working unbearable.
Installing a heater in winter and a fan or AC in summer keeps your shop comfortable and your materials in good shape.
15. Ergonomic Workbenches for Reduced Fatigue
Standing for long hours can be hard on your body. Set your workbenches at a height that reduces strain on your back and shoulders.
Some woodworkers even add anti-fatigue mats for extra comfort.
16. Power Management for Safe and Efficient Operations
Woodworking tools demand a lot of power.
Make sure your shop has enough electrical outlets, preferably mounted at workbench height to avoid tripping hazards.
Use heavy-duty extension cords and surge protectors where necessary.
17. A Lumber Storage Rack for Easy Access
Keeping lumber organized and easy to access speeds up your workflow.
A wall-mounted rack or vertical storage system prevents warping and makes sorting through your stock a breeze.
18. A Multi-Purpose Clamp Station for Seamless Assembly
A dedicated clamp rack ensures your clamps are always within reach when you need them.
Since clamps are essential for almost every project, having them organized and easy to grab saves time.
19. Personalized Touches for a Space You Love
Your shop should be a place that inspires creativity.
Whether it’s a custom sign, a coffee corner, or your favorite woodworking books on display, adding personal touches makes your shop more enjoyable.
A well-planned woodworking shop isn’t just about tools—it’s about efficiency, comfort, and safety. Whether you’re crafting intricate furniture or simple DIY projects, having the right layout can make all the difference.
